Angle Sale Stud and Track C Channel Drywall Main Furring Wall Angle Roll Forming Machine

Short Description:

Angle Keel Roll Forming Machine by bello lin is a type of Caigang pressure equipment, it uses galvanized or aluminum coils as raw materials, formed through continuous cold rolling. In accordance with the requirements of customers design, and manufacture different specifications of cold bending and paint equipment. And it is an indispensable part of, angle steel and L-shaped steel keel in the interior of the house.


Product Detail

FAQ

Product Tags

Basic Info

Control System:PLC

Delivery Time:30 Days

Warranty:12 Months

Material Of Cutting Blade:Cr12

Type:Steel Frame & Purlin Machine

After Service:Engineers Available To Service Machinery Overseas

Voltage:380V/3Phase/50Hz Or At Your Request

Way Of Driven:Chain Or Gear Box

Forming Speed:30-40m/min(excluding Punching)

Cutting Mode:Servo Tracking Cutting

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin Xingang

Product Description

Working process:

Working process

Decoiler - Feeding guide - Straightening - Main roll forming machine - PLC control system - Servo tracking cutting - Receiving table

Technical parameters:

Raw material PPGI, GI, Aluminum coils
Material thickness range 0.3-1mm
Forming speed 30-40m/min(without punching)
Rollers 12 rows
Material for forming rollers 45# steel with chromed
Shaft diameter and material 40mm, the material is 40Cr
Controlling system PLC
Cutting mode Servo tracking cutting
Material of cutting blade Cr12 mold steel with quenched treatment
Voltage 380V/3Phase/50Hz or at your requirement
Main motor power 4KW
Hydraulic station power 3KW
Way of driven Gearbox

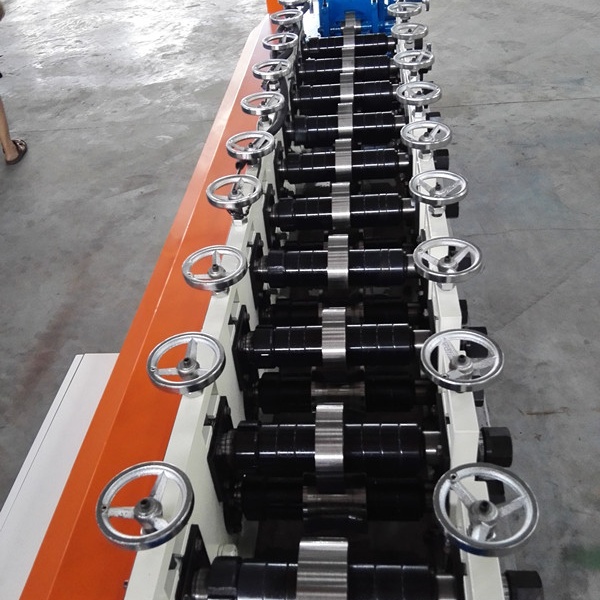

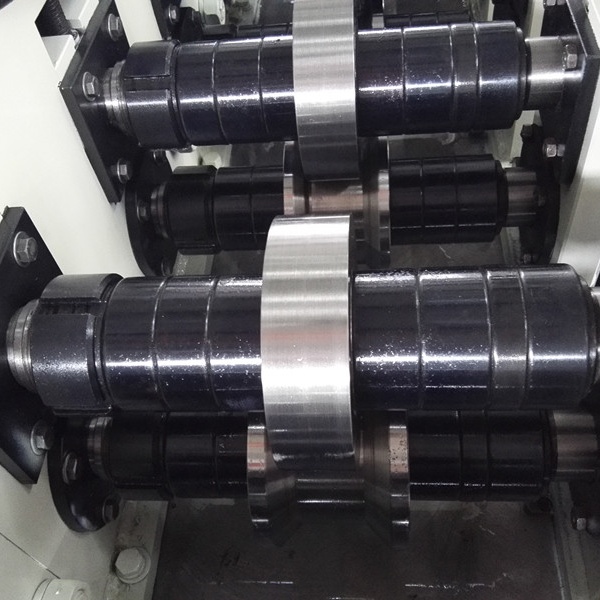

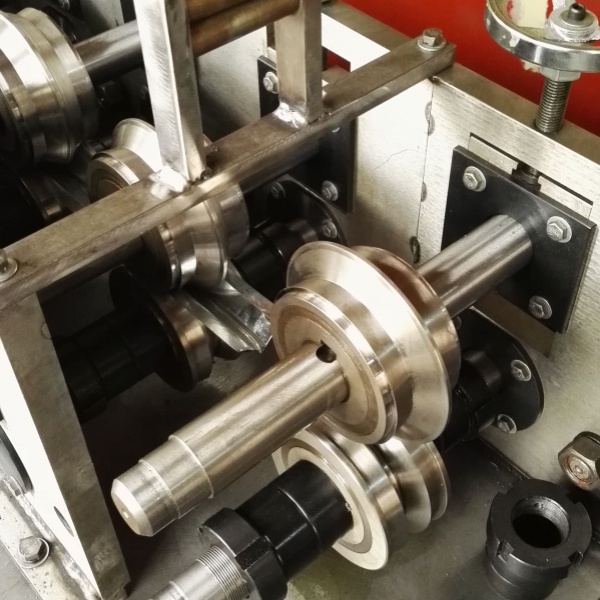

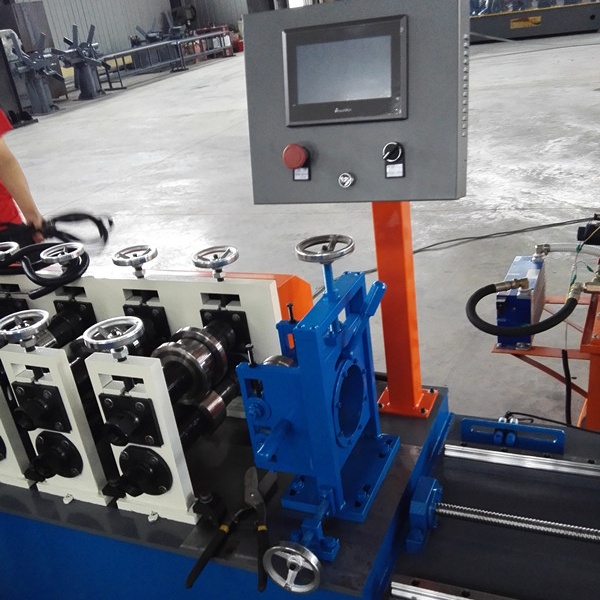

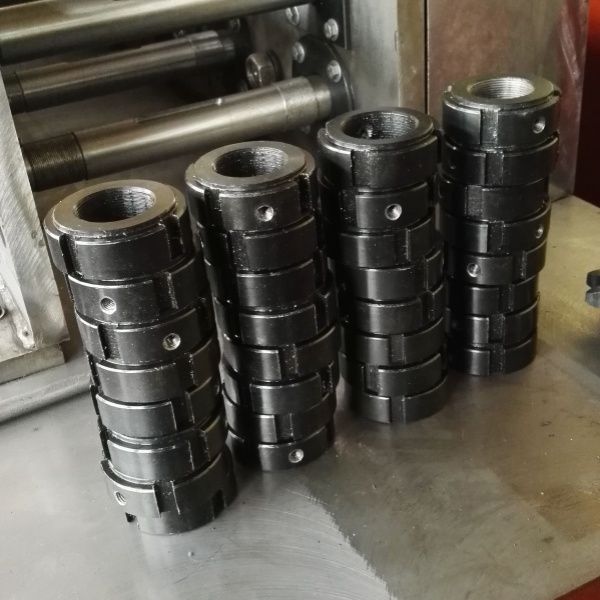

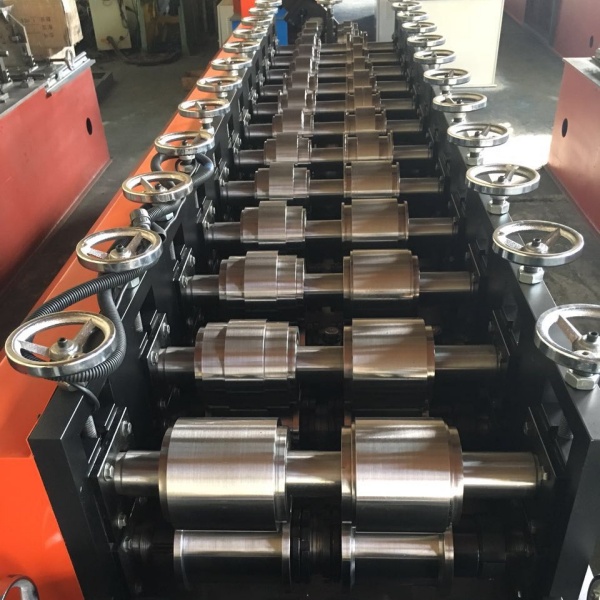

Pictures of the machine:

Angle Sale Stud and Track C Channel Drywall Main Furring Wall Angle Roll Forming Machine
Angle Sale Stud and Track C Channel Drywall Main Furring Wall Angle Roll Forming Machine
Angle Sale Stud and Track C Channel Drywall Main Furring Wall Angle Roll Forming Machine
Angle Sale Stud and Track C Channel Drywall Main Furring Wall Angle Roll Forming Machine
Angle Sale Stud and Track C Channel Drywall Main Furring Wall Angle Roll Forming Machine
Angle Sale Stud and Track C Channel Drywall Main Furring Wall Angle Roll Forming Machine
Angle Sale Stud and Track C Channel Drywall Main Furring Wall Angle Roll Forming Machine
Angle Sale Stud and Track C Channel Drywall Main Furring Wall Angle Roll Forming Machine

Company Information

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO., LTD

YINGYEE is a manufacturer specializing in various cold-forming machinery and automatic production lines. We have a wonderful team with high technology and excellent sales, which offer professional products and related services. We paid attention to quantity and after-service, got great feedback, and honored the clients. We have a great team for after-service. We have sent several patches after the service team to overseas to finish the installation and adjustment of the product. Our products have been sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light keel roll forming machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service locally in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.


Certification and after-service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period
2. Effective communication
3. Interface customized.

Looking for an ideal Wall Angel Galvanized Forming Machine Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Steel Angle Keel Roll Forming Machine are quality guaranteed. We are China Origin Factory of Metal Light Keel Forming Machine. If you have any questions, please feel free to contact us.

Product Categories: Light Keel Roll Forming Machine > Angle Keel Forming Machine
