Angle Iron Roll Forming Machine
Short Description:
U purlin formed by U purlin forming machine, advantages of well compressive strength and flatness; Automatic measuring, cutting and punching; High-level of automation and conveniently installation.
Basic Info
Control System: PLC
Delivery Time: 30 Days
Warranty: 12 Months
Material Of Cutting Blade: Cr12
Type: Steel Frame & Purlin Machine
After Service: Engineers Available To Service Machinery Overseas
Voltage: 380V/3Phase/50Hz Or At Your Request
Way Of Driven: Chain Or Gear Box
Forming Speed: 30-40m/min(excluding Punching)
Cutting Mode: Servo Tracking Cutting
Additional Info
Packaging: NUDE
Productivity: 200 sets/year
Brand: YY
Transportation: Ocean
Place of Origin: Hebei
Supply Ability: 200 sets/year
Certificate: CE/ISO9001
Product Description
Working process:
Decoiler - Feeding guide - Straighteing - Main roll forming machine - PLC control system - Servo tracking cutting - Receiving table
Technical parameters:
| Raw material | PPGI, GI, Aluminum coils |
| Material thickness range | 0.3-1mm |
| Forming speed | 30-40m/min(without punching) |
| Rollers | 12 rows |
| Material of forming rollers | 45# steel with chromed |
| Shaft diameter and material | 40mm, material is 40Cr |
| Controlling system | PLC |
| Cutting mode | Servo tracking cutting |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz or at your requirement |
| Main motor power | 4KW |
| Hydraulic station power | 3KW |
| Way of driven | Gear box |

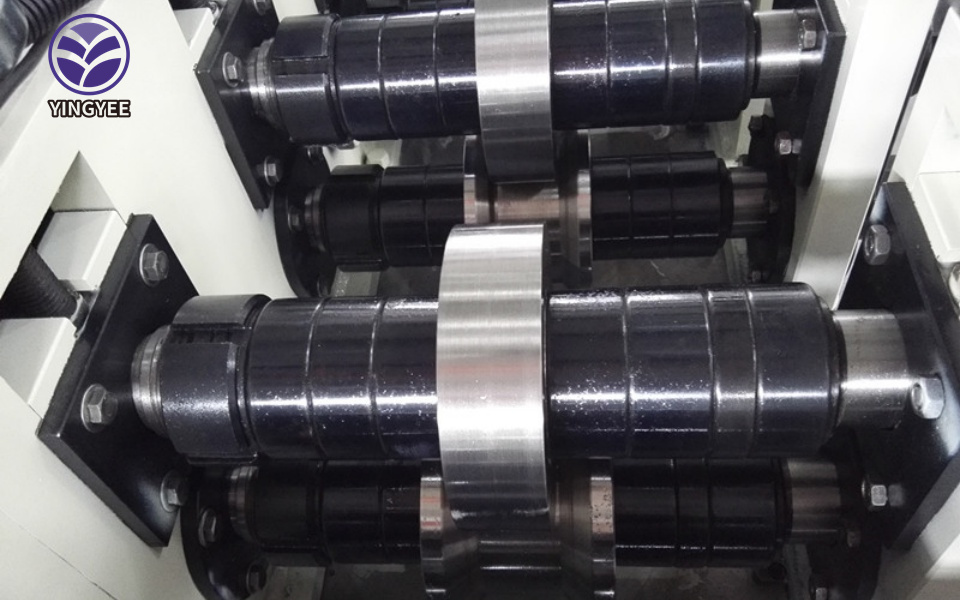

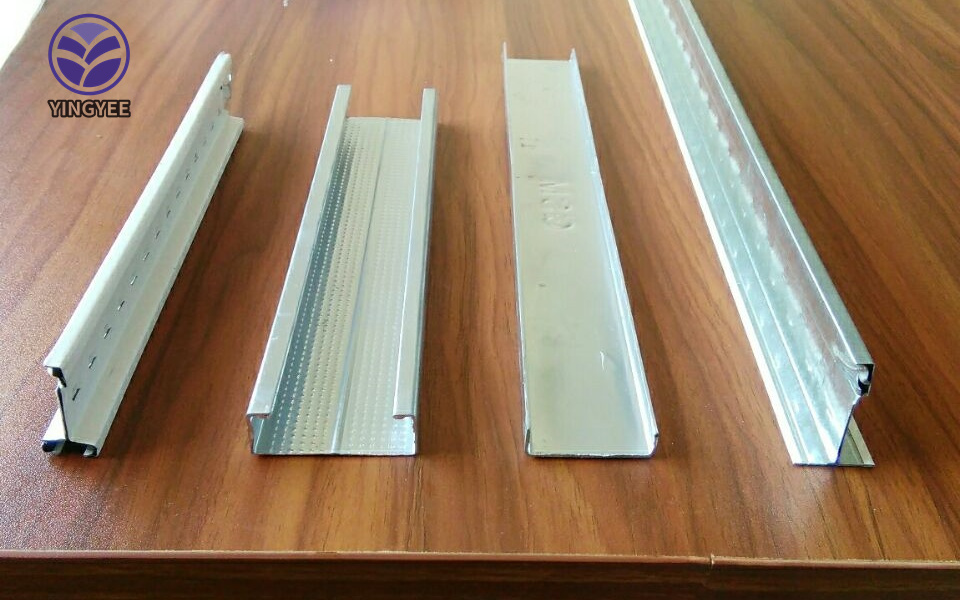

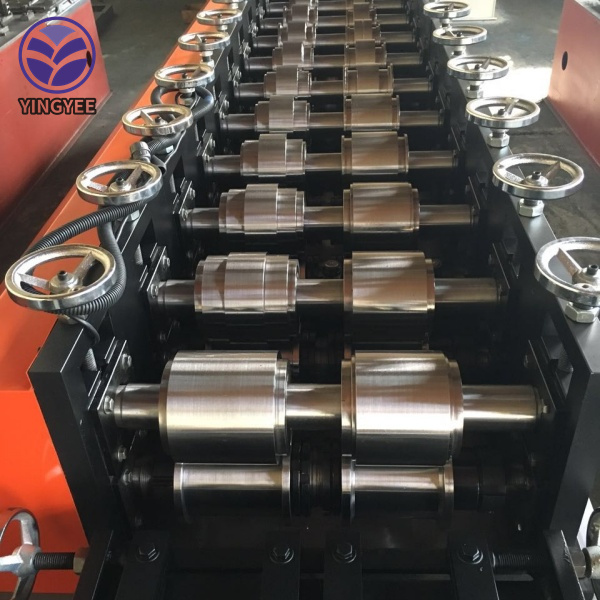

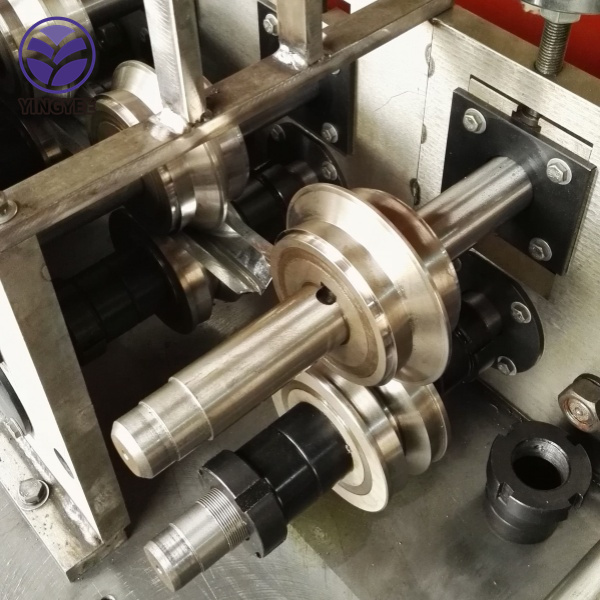

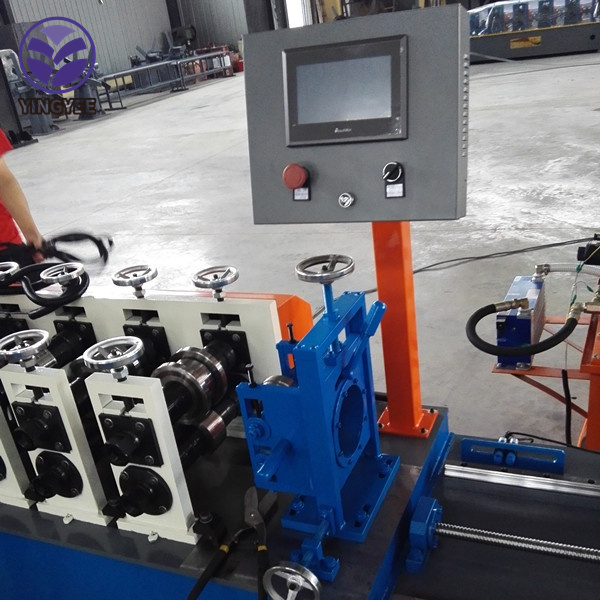

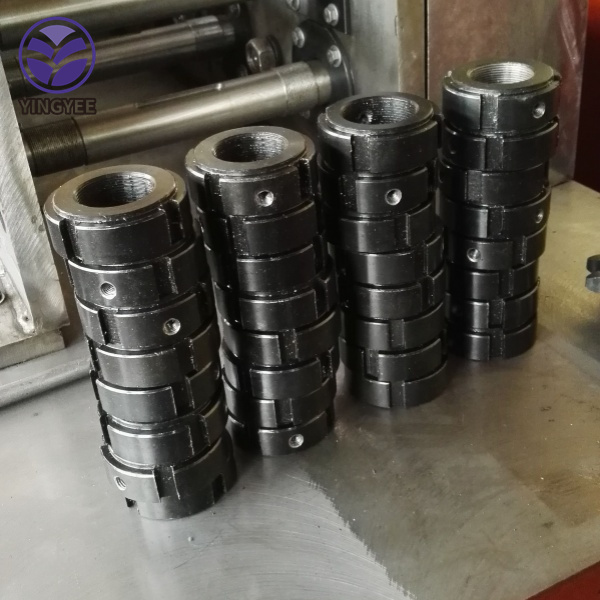

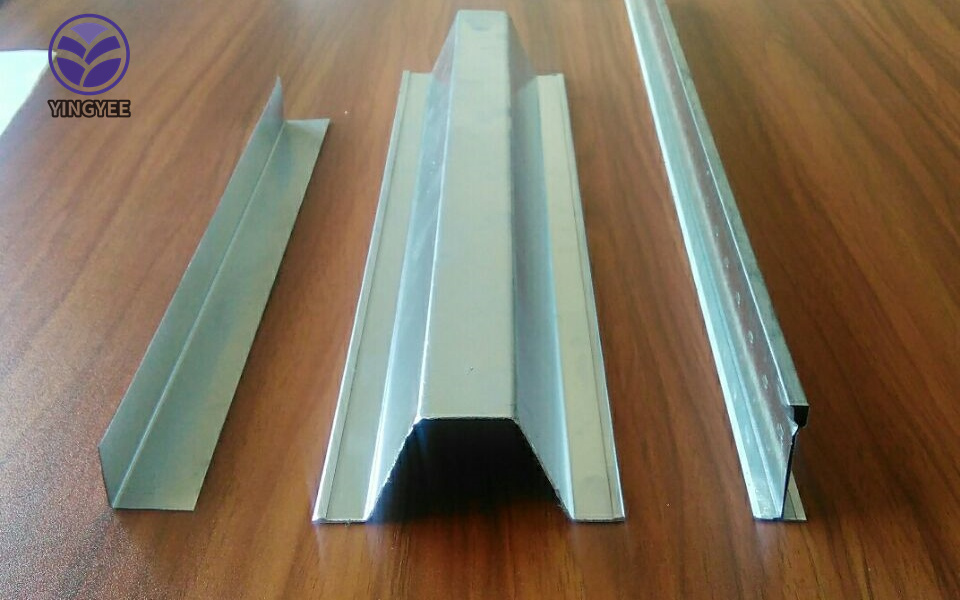

Pictures of Machine:
Company Information
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof Roll Forming Machine
- Roller Shutter Door Roll Forming Machine
- C and Z Purlin Roll Forming Machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic Decoiler
- Bending Machine
- Slitting Machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. Manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. On Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized
