Aluminum square downpipe gutter machine
Short Description:
Basic Info
Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Forming Speed:25-30m/min
Material:GI, PPGI, Aluminum Coils
After Service:Engineers Available To Service Machinery Overseas
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box
Type:Pipe Production Line
Cutting Mode:Flying Saw Cutting Or Mould Cutting
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
Square Downpipe Roll Forming Machine downspout gutter forming machine
Square downspout Cold Roll Forming Machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole. The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project. Water gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
Working Flow: Decoiler – Feeding guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | PPGI, GI, Aluminum steel |
| Material thickness range | 0.2-0.8mm |
| Rollers | 18 rows |
| Material of forming rollers | 45# steel with chromed |
| Shaft diameter and mateiral | 76mm, material is 40Cr |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Forming speed | 12-15m/min(excluding cutting stoping time) |
| Main motor power | 4 KW |
| Hydraulic station power | 3KW |
| Mode of cutting | Hydraulic cutting or flying saw cutting or mould cutting |
| Control system | PLC Frequency Control System with touch screen |

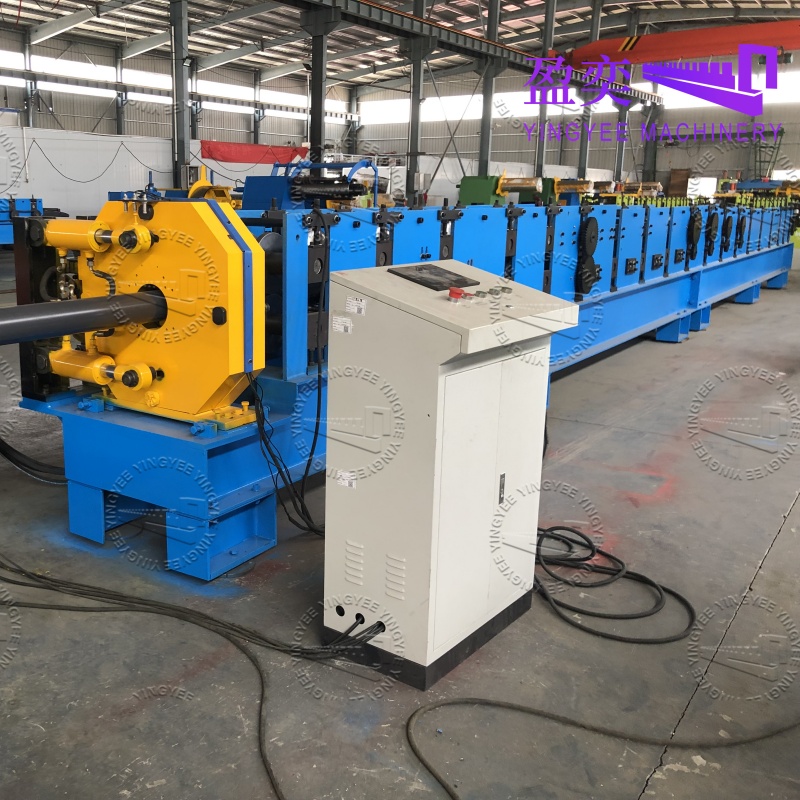

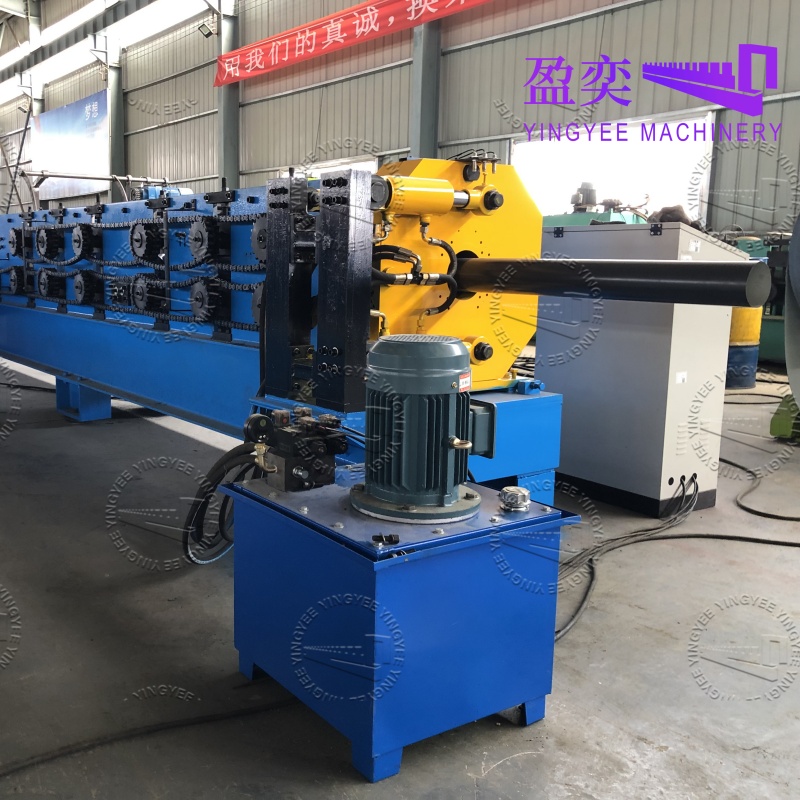

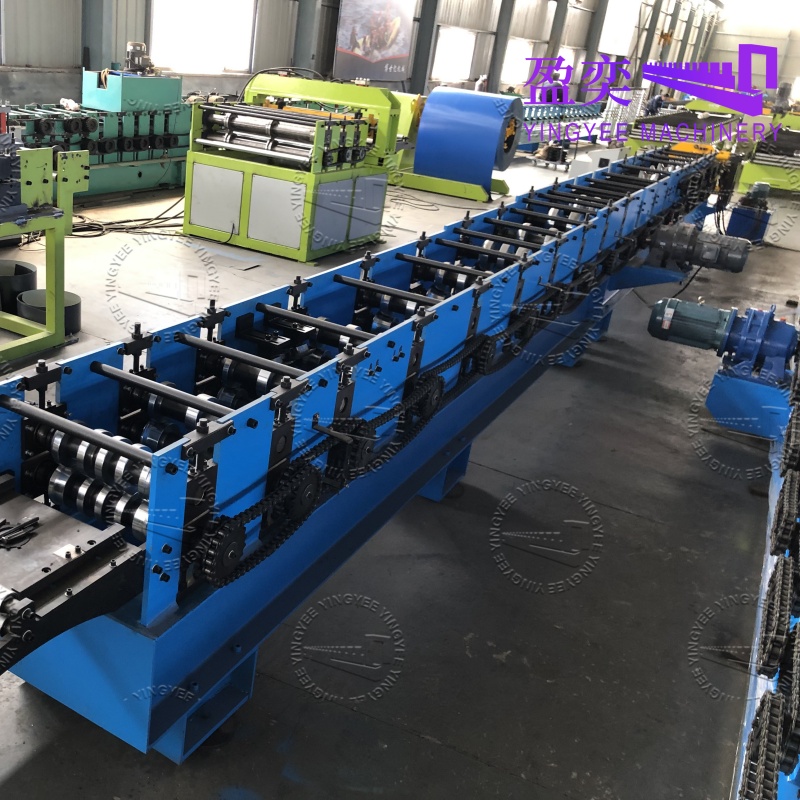

Pictures of machine:
Looking for ideal Downspout Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Aluminum Square Downpipe Roll Forming Machine are quality guaranteed. We are China Origin Factory of Downspout Gutter Roll Forming Machine. If you have any question, please feel free to contact us.
